H261VideoRTPSource Class Reference

#include <H261VideoRTPSource.hh>

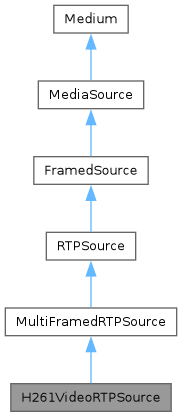

Inheritance diagram for H261VideoRTPSource:

Inheritance graph
[legend]

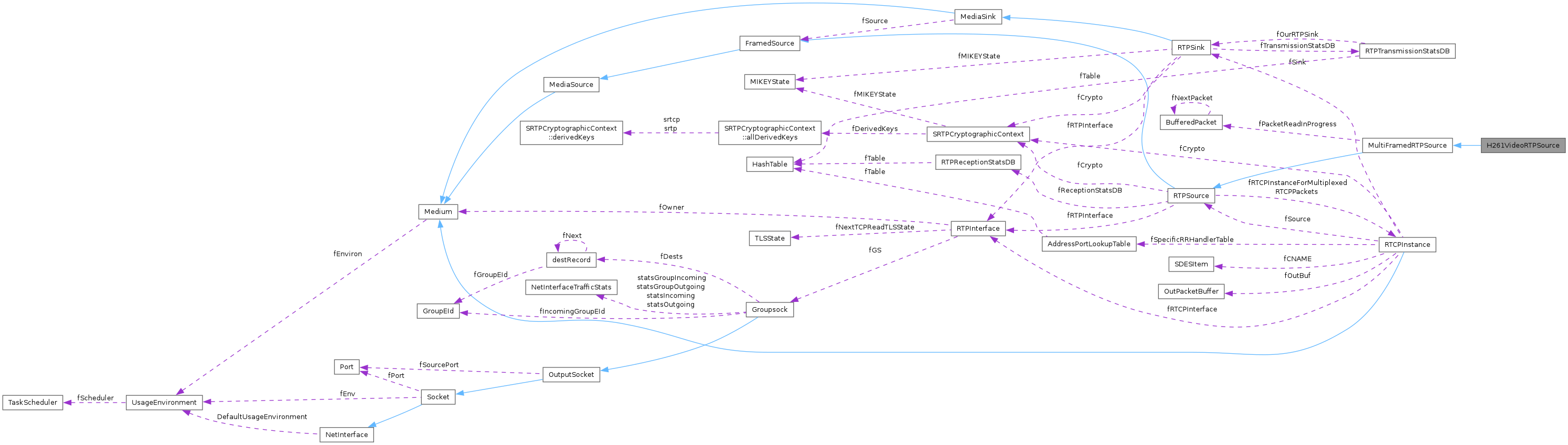

Collaboration diagram for H261VideoRTPSource:

Collaboration graph
[legend]

Public Types

typedef void( afterGettingFunc )(void *clientData, unsigned frameSize, unsigned numTruncatedBytes, struct timeval presentationTime, unsigned durationInMicroseconds)
typedef void( onCloseFunc )(void *clientData)

Public Member Functions

u_int32_t lastSpecialHeader () const
Boolean curPacketMarkerBit () const
unsigned char rtpPayloadFormat () const
virtual Boolean hasBeenSynchronizedUsingRTCP ()
Groupsock * RTPgs () const
u_int32_t SSRC () const
unsigned timestampFrequency () const
RTPReceptionStatsDB & receptionStatsDB () const
u_int32_t lastReceivedSSRC () const
Boolean & enableRTCPReports ()
void setStreamSocket (int sockNum, unsigned char streamChannelId)
void setServerRequestAlternativeByteHandler (int socketNum, ServerRequestAlternativeByteHandler *handler, void *clientData)
void setAuxilliaryReadHandler (AuxHandlerFunc *handlerFunc, void *handlerClientData)
u_int16_t curPacketRTPSeqNum () const
void getNextFrame (unsigned char *to, unsigned maxSize, afterGettingFunc *afterGettingFunc, void *afterGettingClientData, onCloseFunc *onCloseFunc, void *onCloseClientData)
void stopGettingFrames ()
virtual unsigned maxFrameSize () const
Boolean isCurrentlyAwaitingData () const
virtual Boolean isMPEG1or2VideoStreamFramer () const
virtual Boolean isMPEG4VideoStreamFramer () const
virtual Boolean isH264VideoStreamFramer () const
virtual Boolean isDVVideoStreamFramer () const
virtual Boolean isJPEGVideoSource () const
virtual Boolean isAMRAudioSource () const
UsageEnvironment & envir () const
char const * name () const
virtual Boolean isSink () const
virtual Boolean isRTCPInstance () const
virtual Boolean isRTSPClient () const
virtual Boolean isRTSPServer () const
virtual Boolean isMediaSession () const
virtual Boolean isServerMediaSession () const
virtual Boolean isDarwinInjector () const

Static Public Member Functions

static H261VideoRTPSource * createNew (UsageEnvironment &env, Groupsock *RTPgs, unsigned char rtpPayloadFormat=31, unsigned rtpTimestampFrequency=90000)
static Boolean lookupByName (UsageEnvironment &env, char const *sourceName, RTPSource *&resultSource)
static Boolean lookupByName (UsageEnvironment &env, char const *sourceName, FramedSource *&resultSource)
static Boolean lookupByName (UsageEnvironment &env, char const *sourceName, MediaSource *&resultSource)
static Boolean lookupByName (UsageEnvironment &env, char const *mediumName, Medium *&resultMedium)
static void handleClosure (void *clientData)
static void afterGetting (FramedSource *source)
static void close (UsageEnvironment &env, char const *mediumName)
static void close (Medium *medium)

Protected Member Functions

virtual ~H261VideoRTPSource ()
virtual Boolean packetIsUsableInJitterCalculation (unsigned char *packet, unsigned packetSize)
virtual void doStopGettingFrames ()
TaskToken & nextTask ()

Protected Attributes

Boolean fCurrentPacketBeginsFrame
Boolean fCurrentPacketCompletesFrame
RTPInterface fRTPInterface
u_int16_t fCurPacketRTPSeqNum
u_int32_t fCurPacketRTPTimestamp
Boolean fCurPacketMarkerBit
Boolean fCurPacketHasBeenSynchronizedUsingRTCP
u_int32_t fLastReceivedSSRC
unsigned char * fTo
unsigned fMaxSize
unsigned fFrameSize
unsigned fNumTruncatedBytes
timeval fPresentationTime
unsigned fDurationInMicroseconds

Private Member Functions

 H261VideoRTPSource (UsageEnvironment &env, Groupsock *RTPgs, unsigned char rtpPayloadFormat, unsigned rtpTimestampFrequency)
virtual Boolean processSpecialHeader (BufferedPacket *packet, unsigned &resultSpecialHeaderSize)
virtual char const * MIMEtype () const

Private Attributes

u_int32_t fLastSpecialHeader

Friends

class MediaLookupTable

Detailed Description

Definition at line 28 of file H261VideoRTPSource.hh.

Member Typedef Documentation

typedef void( FramedSource::afterGettingFunc)(void *clientData, unsigned frameSize, unsigned numTruncatedBytes, struct timeval presentationTime, unsigned durationInMicroseconds) [inherited]

Definition at line 36 of file FramedSource.hh.

typedef void( FramedSource::onCloseFunc)(void *clientData) [inherited]

Definition at line 40 of file FramedSource.hh.

Constructor & Destructor Documentation

H261VideoRTPSource::~H261VideoRTPSource (  )  [protected, virtual]

Definition at line 40 of file H261VideoRTPSource.cpp.

00040                                         {
00041 }

H261VideoRTPSource::H261VideoRTPSource ( UsageEnvironment &  env,
Groupsock *  RTPgs,
unsigned char  rtpPayloadFormat,
unsigned  rtpTimestampFrequency
) [private]

Definition at line 32 of file H261VideoRTPSource.cpp.

Referenced by createNew().

00035   : MultiFramedRTPSource(env, RTPgs,
00036                          rtpPayloadFormat, rtpTimestampFrequency),
00037   fLastSpecialHeader(0) {
00038 }

Member Function Documentation

H261VideoRTPSource * H261VideoRTPSource::createNew ( UsageEnvironment &  env,
Groupsock *  RTPgs,
unsigned char  rtpPayloadFormat = 31,
unsigned  rtpTimestampFrequency = 90000
) [static]

Definition at line 24 of file H261VideoRTPSource.cpp.

References env, H261VideoRTPSource(), and RTPSource::RTPgs().

Referenced by MediaSubsession::createSourceObjects().

00026                                                                   {
00027   return new H261VideoRTPSource(env, RTPgs, rtpPayloadFormat,
00028                                     rtpTimestampFrequency);
00029 }

u_int32_t H261VideoRTPSource::lastSpecialHeader (  )  const [inline]

Definition at line 35 of file H261VideoRTPSource.hh.

References fLastSpecialHeader.

00035 {return fLastSpecialHeader;}

Boolean H261VideoRTPSource::processSpecialHeader ( BufferedPacket *  packet,
unsigned &  resultSpecialHeaderSize
) [private, virtual]

Reimplemented from MultiFramedRTPSource.

Definition at line 44 of file H261VideoRTPSource.cpp.

References False, MultiFramedRTPSource::fCurrentPacketBeginsFrame, MultiFramedRTPSource::fCurrentPacketCompletesFrame, fLastSpecialHeader, and True.

00045                                                           {
00046   // There's a 4-byte video-specific header
00047   if (packet->dataSize() < 4) return False;
00048
00049   unsigned char* headerStart = packet->data();
00050   fLastSpecialHeader
00051     = (headerStart[0]<<24)|(headerStart[1]<<16)|(headerStart[2]<<8)|headerStart[3];
00052
00053 #ifdef DELIVER_COMPLETE_FRAMES
00054   fCurrentPacketBeginsFrame = fCurrentPacketCompletesFrame;
00055   // whether the *previous* packet ended a frame
00056
00057   // The RTP "M" (marker) bit indicates the last fragment of a frame:
00058   fCurrentPacketCompletesFrame = packet->rtpMarkerBit();
00059 #endif
00060
00061   resultSpecialHeaderSize = 4;
00062   return True;
00063 }

char const * H261VideoRTPSource::MIMEtype (  )  const [private, virtual]

Reimplemented from MediaSource.

Definition at line 65 of file H261VideoRTPSource.cpp.

00065                                                {
00066   return "video/H261";
00067 }

Boolean MultiFramedRTPSource::packetIsUsableInJitterCalculation ( unsigned char *  packet,
unsigned  packetSize
) [protected, virtual, inherited]

Reimplemented in MPEG1or2VideoRTPSource.

Definition at line 101 of file MultiFramedRTPSource.cpp.

References True.

Referenced by MultiFramedRTPSource::networkReadHandler1().

00102                                                              {
00103   // Default implementation:
00104   return True;
00105 }

void MultiFramedRTPSource::doStopGettingFrames (  )  [protected, virtual, inherited]

Reimplemented from FramedSource.

Definition at line 107 of file MultiFramedRTPSource.cpp.

References Medium::envir(), MultiFramedRTPSource::fReorderingBuffer, RTPSource::fRTPInterface, Medium::nextTask(), MultiFramedRTPSource::reset(), ReorderingPacketBuffer::reset(), RTPInterface::stopNetworkReading(), UsageEnvironment::taskScheduler(), and TaskScheduler::unscheduleDelayedTask().

00107                                                {
00108   envir().taskScheduler().unscheduleDelayedTask(nextTask());
00109   fRTPInterface.stopNetworkReading();
00110   fReorderingBuffer->reset();
00111   reset();
00112 }

Boolean RTPSource::lookupByName ( UsageEnvironment &  env,
char const *  sourceName,
RTPSource *&  resultSource
) [static, inherited]

Definition at line 26 of file RTPSource.cpp.

References env, False, MediaSource::isRTPSource(), MediaSource::lookupByName(), NULL, and True.

00028                                                           {
00029   resultSource = NULL; // unless we succeed
00030
00031   MediaSource* source;
00032   if (!MediaSource::lookupByName(env, sourceName, source)) return False;
00033
00034   if (!source->isRTPSource()) {
00035     env.setResultMsg(sourceName, " is not a RTP source");
00036     return False;
00037   }
00038
00039   resultSource = (RTPSource*)source;
00040   return True;
00041 }

Boolean FramedSource::lookupByName ( UsageEnvironment &  env,
char const *  sourceName,
FramedSource *&  resultSource
) [static, inherited]

Definition at line 41 of file FramedSource.cpp.

References env, False, MediaSource::isFramedSource(), MediaSource::lookupByName(), NULL, and True.

Referenced by MP3ADUinterleaverBase::getInputSource().

00042                                                                 {
00043   resultSource = NULL; // unless we succeed
00044
00045   MediaSource* source;
00046   if (!MediaSource::lookupByName(env, sourceName, source)) return False;
00047
00048   if (!source->isFramedSource()) {
00049     env.setResultMsg(sourceName, " is not a framed source");
00050     return False;
00051   }
00052
00053   resultSource = (FramedSource*)source;
00054   return True;
00055 }

Boolean MediaSource::lookupByName ( UsageEnvironment &  env,
char const *  sourceName,
MediaSource *&  resultSource
) [static, inherited]

Definition at line 65 of file MediaSource.cpp.

References env, False, Medium::isSource(), Medium::lookupByName(), NULL, and True.

Referenced by RTPSource::lookupByName(), and FramedSource::lookupByName().

00067                                                               {
00068   resultSource = NULL; // unless we succeed
00069
00070   Medium* medium;
00071   if (!Medium::lookupByName(env, sourceName, medium)) return False;
00072
00073   if (!medium->isSource()) {
00074     env.setResultMsg(sourceName, " is not a media source");
00075     return False;
00076   }
00077
00078   resultSource = (MediaSource*)medium;
00079   return True;
00080 }

Boolean Medium::lookupByName ( UsageEnvironment &  env,
char const *  mediumName,
Medium *&  resultMedium
) [static, inherited]

Definition at line 41 of file Media.cpp.

References env, False, MediaLookupTable::lookup(), NULL, MediaLookupTable::ourMedia(), UsageEnvironment::setResultMsg(), and True.

Referenced by ServerMediaSession::lookupByName(), RTSPServer::lookupByName(), RTSPClient::lookupByName(), RTCPInstance::lookupByName(), MediaSource::lookupByName(), MediaSink::lookupByName(), MediaSession::lookupByName(), and DarwinInjector::lookupByName().

00042                                                          {
00043   resultMedium = MediaLookupTable::ourMedia(env)->lookup(mediumName);
00044   if (resultMedium == NULL) {
00045     env.setResultMsg("Medium ", mediumName, " does not exist");
00046     return False;
00047   }
00048
00049   return True;
00050 }

Boolean RTPSource::curPacketMarkerBit (  )  const [inline, inherited]

Definition at line 38 of file RTPSource.hh.

References RTPSource::fCurPacketMarkerBit.

Referenced by PresentationTimeSubsessionNormalizer::afterGettingFrame(), and SubsessionIOState::useFrameForHinting().

00038 { return fCurPacketMarkerBit; }

unsigned char RTPSource::rtpPayloadFormat (  )  const [inline, inherited]

Definition at line 40 of file RTPSource.hh.

References RTPSource::fRTPPayloadFormat.

Referenced by QuickTimeFileSink::addAtom_hdlr2(), MultiFramedRTPSource::networkReadHandler1(), and SubsessionIOState::useFrameForHinting().

00040 { return fRTPPayloadFormat; }

Boolean RTPSource::hasBeenSynchronizedUsingRTCP (  )  [virtual, inherited]

Reimplemented in RawAMRRTPSource, and RawQCELPRTPSource.

Definition at line 43 of file RTPSource.cpp.

References RTPSource::fCurPacketHasBeenSynchronizedUsingRTCP.

Referenced by DummySink::afterGettingFrame(), checkForPacketArrival(), PresentationTimeSessionNormalizer::normalizePresentationTime(), RawQCELPRTPSource::processSpecialHeader(), SubsessionIOState::syncOK(), and SubsessionIOState::useFrame().

00043                                                 {
00044   return fCurPacketHasBeenSynchronizedUsingRTCP;
00045 }

Groupsock* RTPSource::RTPgs (  )  const [inline, inherited]

Definition at line 44 of file RTPSource.hh.

References RTPSource::fRTPInterface, and RTPInterface::gs().

Referenced by continueAfterDESCRIBE(), VP8VideoRTPSource::createNew(), VorbisAudioRTPSource::createNew(), SimpleRTPSource::createNew(), QuickTimeGenericRTPSource::createNew(), RawQCELPRTPSource::createNew(), MPEG4LATMAudioRTPSource::createNew(), MPEG4GenericRTPSource::createNew(), MPEG4ESVideoRTPSource::createNew(), MPEG1or2VideoRTPSource::createNew(), MPEG1or2AudioRTPSource::createNew(), MP3ADURTPSource::createNew(), JPEGVideoRTPSource::createNew(), H264VideoRTPSource::createNew(), H263plusVideoRTPSource::createNew(), createNew(), DVVideoRTPSource::createNew(), RawAMRRTPSource::createNew(), AC3AudioRTPSource::createNew(), and RTSPClient::handleSETUPResponse().

00044 { return fRTPInterface.gs(); }

u_int32_t RTPSource::SSRC (  )  const [inline, inherited]

Definition at line 49 of file RTPSource.hh.

References RTPSource::fSSRC.

Referenced by RTCPInstance::addBYE(), RTCPInstance::addRR(), and RTCPInstance::addSDES().

00049 { return fSSRC; }

unsigned RTPSource::timestampFrequency (  )  const [inline, inherited]

Definition at line 53 of file RTPSource.hh.

References RTPSource::fTimestampFrequency.

Referenced by QuickTimeFileSink::addAtom_hdlr2(), and MultiFramedRTPSource::networkReadHandler1().

00053 {return fTimestampFrequency;}

RTPReceptionStatsDB& RTPSource::receptionStatsDB (  )  const [inline, inherited]

Definition at line 55 of file RTPSource.hh.

References RTPSource::fReceptionStatsDB.

Referenced by checkForPacketArrival(), checkInterPacketGaps(), RTCPInstance::enqueueCommonReportSuffix(), RTCPInstance::incomingReportHandler1(), MultiFramedRTPSource::networkReadHandler1(), printQOSData(), qosMeasurementRecord::qosMeasurementRecord(), and RTCPInstance::removeSSRC().

00055                                                 {
00056     return *fReceptionStatsDB;
00057   }

u_int32_t RTPSource::lastReceivedSSRC (  )  const [inline, inherited]

Definition at line 59 of file RTPSource.hh.

References RTPSource::fLastReceivedSSRC.

00059 { return fLastReceivedSSRC; }

Boolean& RTPSource::enableRTCPReports (  )  [inline, inherited]

Definition at line 62 of file RTPSource.hh.

References RTPSource::fEnableRTCPReports.

Referenced by RTSPClient::handlePLAYResponse(), and RTSPClient::handleSETUPResponse().

00062 { return fEnableRTCPReports; }

void RTPSource::setStreamSocket ( int  sockNum,
unsigned char  streamChannelId
) [inline, inherited]

Definition at line 64 of file RTPSource.hh.

References RTPSource::fRTPInterface, and RTPInterface::setStreamSocket().

Referenced by RTSPClient::handleSETUPResponse().

00064                                                                    {
00065     // hack to allow sending RTP over TCP (RFC 2236, section 10.12)
00066     fRTPInterface.setStreamSocket(sockNum, streamChannelId);
00067   }

void RTPSource::setServerRequestAlternativeByteHandler ( int  socketNum,
ServerRequestAlternativeByteHandler *  handler,
void *  clientData
) [inline, inherited]

Definition at line 68 of file RTPSource.hh.

References RTPSource::fRTPInterface, and RTPInterface::setServerRequestAlternativeByteHandler().

Referenced by RTSPClient::handleSETUPResponse().

00068                                                                                                                              {
00069     fRTPInterface.setServerRequestAlternativeByteHandler(socketNum, handler, clientData);
00070   }

void RTPSource::setAuxilliaryReadHandler ( AuxHandlerFunc *  handlerFunc,
void *  handlerClientData
) [inline, inherited]

Definition at line 72 of file RTPSource.hh.

References RTPSource::fRTPInterface, and RTPInterface::setAuxilliaryReadHandler().

00073                                                          {
00074     fRTPInterface.setAuxilliaryReadHandler(handlerFunc,
00075                                            handlerClientData);
00076   }

u_int16_t RTPSource::curPacketRTPSeqNum (  )  const [inline, inherited]

Definition at line 81 of file RTPSource.hh.

References RTPSource::fCurPacketRTPSeqNum.

Referenced by SubsessionIOState::afterGettingFrame(), AVISubsessionIOState::afterGettingFrame(), QCELPDeinterleaver::afterGettingFrame1(), and AMRDeinterleavingBuffer::deliverIncomingFrame().

00081 { return fCurPacketRTPSeqNum; }

void FramedSource::getNextFrame ( unsigned char *  to,
unsigned  maxSize,
afterGettingFunc *  afterGettingFunc,
void *  afterGettingClientData,
onCloseFunc *  onCloseFunc,
void *  onCloseClientData
) [inherited]

Definition at line 57 of file FramedSource.cpp.

References FramedSource::doGetNextFrame(), Medium::envir(), FramedSource::fAfterGettingClientData, FramedSource::fAfterGettingFunc, FramedSource::fDurationInMicroseconds, FramedSource::fIsCurrentlyAwaitingData, FramedSource::fMaxSize, FramedSource::fNumTruncatedBytes, FramedSource::fOnCloseClientData, FramedSource::fOnCloseFunc, FramedSource::fTo, UsageEnvironment::internalError(), and True.

Referenced by MPEG2TransportStreamFramer::afterGettingFrame1(), InputESSourceRecord::askForNewData(), MPEG2TransportStreamFromPESSource::awaitNewBuffer(), DummySink::continuePlaying(), QuickTimeFileSink::continuePlaying(), MFSD_DummySink::continuePlaying(), FileSink::continuePlaying(), AVIFileSink::continuePlaying(), BasicUDPSink::continuePlaying1(), StreamReplicator::deactivateStreamReplica(), StreamReplicator::deliverReceivedFrame(), EndianSwap24::doGetNextFrame(), EndianSwap16::doGetNextFrame(), HostFromNetworkOrder16::doGetNextFrame(), NetworkFromHostOrder16::doGetNextFrame(), PCMFromuLawAudioSource::doGetNextFrame(), uLawFromPCMAudioSource::doGetNextFrame(), T140IdleFilter::doGetNextFrame(), QCELPDeinterleaver::doGetNextFrame(), PresentationTimeSubsessionNormalizer::doGetNextFrame(), MPEG4VideoStreamDiscreteFramer::doGetNextFrame(), MPEG2TransportStreamFramer::doGetNextFrame(), MPEG2IFrameIndexFromTransportStream::doGetNextFrame(), MPEG1or2VideoStreamDiscreteFramer::doGetNextFrame(), MP3ADUTranscoder::doGetNextFrame(), MP3ADUdeinterleaver::doGetNextFrame(), MP3ADUinterleaver::doGetNextFrame(), H264VideoStreamDiscreteFramer::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), ByteStreamMultiFileSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), SegmentQueue::enqueueNewSegment(), StreamParser::ensureValidBytes1(), DVVideoStreamFramer::getAndDeliverData(), StreamReplicator::getNextFrame(), DVVideoStreamFramer::getProfile(), MultiFramedRTPSink::packFrame(), TCPStreamSink::processBuffer(), AC3AudioStreamParser::readAndSaveAFrame(), and MPEG2TransportStreamTrickModeFilter::readTransportPacket().

00061                                                          {
00062   // Make sure we're not already being read:
00063   if (fIsCurrentlyAwaitingData) {
00064     envir() << "FramedSource[" << this << "]::getNextFrame(): attempting to read more than once at the same time!\n";
00065     envir().internalError();
00066   }
00067
00068   fTo = to;
00069   fMaxSize = maxSize;
00070   fNumTruncatedBytes = 0; // by default; could be changed by doGetNextFrame()
00071   fDurationInMicroseconds = 0; // by default; could be changed by doGetNextFrame()
00072   fAfterGettingFunc = afterGettingFunc;
00073   fAfterGettingClientData = afterGettingClientData;
00074   fOnCloseFunc = onCloseFunc;
00075   fOnCloseClientData = onCloseClientData;
00076   fIsCurrentlyAwaitingData = True;
00077
00078   doGetNextFrame();
00079 }

void FramedSource::handleClosure ( void *  clientData  )  [static, inherited]

Definition at line 95 of file FramedSource.cpp.

References False, FramedSource::fIsCurrentlyAwaitingData, FramedSource::fOnCloseClientData, FramedSource::fOnCloseFunc, and NULL.

Referenced by MPEG2TransportStreamFramer::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), InputESSourceRecord::askForNewData(), MPEG2TransportStreamFromPESSource::awaitNewBuffer(), WAVAudioFileSource::doGetNextFrame(), EndianSwap24::doGetNextFrame(), EndianSwap16::doGetNextFrame(), HostFromNetworkOrder16::doGetNextFrame(), NetworkFromHostOrder16::doGetNextFrame(), PCMFromuLawAudioSource::doGetNextFrame(), uLawFromPCMAudioSource::doGetNextFrame(), QCELPDeinterleaver::doGetNextFrame(), PresentationTimeSubsessionNormalizer::doGetNextFrame(), MPEG4VideoStreamDiscreteFramer::doGetNextFrame(), MPEG2TransportStreamFramer::doGetNextFrame(), MPEG1or2VideoStreamDiscreteFramer::doGetNextFrame(), MPEG1or2DemuxedElementaryStream::doGetNextFrame(), MP3FileSource::doGetNextFrame(), MP3ADUTranscoder::doGetNextFrame(), MP3ADUdeinterleaver::doGetNextFrame(), MP3ADUinterleaver::doGetNextFrame(), ADUFromMP3Source::doGetNextFrame(), H264VideoStreamDiscreteFramer::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), DeviceSource::doGetNextFrame(), ByteStreamMultiFileSource::doGetNextFrame(), ByteStreamMemoryBufferSource::doGetNextFrame(), ByteStreamFileSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), SegmentQueue::enqueueNewSegment(), DVVideoStreamFramer::getAndDeliverData(), StreamReplicator::getNextFrame(), DVVideoStreamFramer::getProfile(), MatroskaDemux::handleEndOfFile(), MPEG2IFrameIndexFromTransportStream::handleInputClosure1(), T140IdleFilter::onSourceClosure(), StreamReplicator::onSourceClosure(), MPEG2TransportStreamTrickModeFilter::onSourceClosure1(), and ProxyServerMediaSubsession::subsessionByeHandler().

00095                                                  {
00096   FramedSource* source = (FramedSource*)clientData;
00097   source->fIsCurrentlyAwaitingData = False; // because we got a close instead
00098   if (source->fOnCloseFunc != NULL) {
00099     (*(source->fOnCloseFunc))(source->fOnCloseClientData);
00100   }
00101 }

void FramedSource::stopGettingFrames (  )  [inherited]

Definition at line 103 of file FramedSource.cpp.

References FramedSource::doStopGettingFrames(), False, and FramedSource::fIsCurrentlyAwaitingData.

Referenced by FileSink::afterGettingFrame(), StreamReplicator::deactivateStreamReplica(), QCELPDeinterleaver::doStopGettingFrames(), MPEG2TransportStreamFromPESSource::doStopGettingFrames(), FramedFilter::doStopGettingFrames(), AMRDeinterleaver::doStopGettingFrames(), and MediaSink::stopPlaying().

00103                                      {
00104   fIsCurrentlyAwaitingData = False; // indicates that we can be read again
00105
00106   // Perform any specialized action now:
00107   doStopGettingFrames();
00108 }

unsigned FramedSource::maxFrameSize (  )  const [virtual, inherited]

Reimplemented in MPEG1or2DemuxedElementaryStream.

Definition at line 116 of file FramedSource.cpp.

Referenced by StreamParser::ensureValidBytes1().

00116                                           {
00117   // By default, this source has no maximum frame size.
00118   return 0;
00119 }

Boolean FramedSource::isCurrentlyAwaitingData (  )  const [inline, inherited]

Definition at line 60 of file FramedSource.hh.

References FramedSource::fIsCurrentlyAwaitingData.

Referenced by T140IdleFilter::afterGettingFrame(), afterPlaying(), InputESSourceRecord::askForNewData(), MPEG2TransportStreamFromESSource::awaitNewBuffer(), MatroskaFileParser::continueParsing(), QuickTimeFileSink::continuePlaying(), AVIFileSink::continuePlaying(), StreamReplicator::deactivateStreamReplica(), DeviceSource::deliverFrame(), MatroskaFileParser::deliverFrameWithinBlock(), T140IdleFilter::doGetNextFrame(), QCELPDeinterleaver::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), WAVAudioFileSource::fileReadableHandler(), ByteStreamFileSource::fileReadableHandler(), StreamReplicator::getNextFrame(), BasicUDPSource::incomingPacketHandler1(), and TCPStreamSink::processBuffer().

00060 {return fIsCurrentlyAwaitingData;}

void FramedSource::afterGetting ( FramedSource *  source  )  [static, inherited]

Definition at line 81 of file FramedSource.cpp.

References FramedSource::fAfterGettingClientData, FramedSource::fAfterGettingFunc, False, FramedSource::fDurationInMicroseconds, FramedSource::fFrameSize, FramedSource::fIsCurrentlyAwaitingData, FramedSource::fNumTruncatedBytes, FramedSource::fPresentationTime, and NULL.

Referenced by PresentationTimeSubsessionNormalizer::afterGettingFrame(), ByteStreamMultiFileSource::afterGettingFrame(), EndianSwap24::afterGettingFrame1(), EndianSwap16::afterGettingFrame1(), HostFromNetworkOrder16::afterGettingFrame1(), NetworkFromHostOrder16::afterGettingFrame1(), PCMFromuLawAudioSource::afterGettingFrame1(), uLawFromPCMAudioSource::afterGettingFrame1(), MPEG2TransportStreamFramer::afterGettingFrame1(), MPEG1or2DemuxedElementaryStream::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), H264VideoStreamDiscreteFramer::afterGettingFrame1(), MPEG2TransportStreamTrickModeFilter::attemptDeliveryToClient(), MPEGVideoStreamFramer::continueReadProcessing(), MPEG1or2AudioStreamFramer::continueReadProcessing(), H263plusVideoStreamFramer::continueReadProcessing(), T140IdleFilter::deliverEmptyFrame(), DeviceSource::deliverFrame(), MatroskaFileParser::deliverFrameBytes(), T140IdleFilter::deliverFromBuffer(), MPEG2IFrameIndexFromTransportStream::deliverIndexRecord(), StreamReplicator::deliverReceivedFrame(), QCELPDeinterleaver::doGetNextFrame(), MPEG2TransportStreamTrickModeFilter::doGetNextFrame(), MPEG2TransportStreamMultiplexor::doGetNextFrame(), MP3FileSource::doGetNextFrame(), MP3ADUdeinterleaver::doGetNextFrame(), MP3ADUinterleaver::doGetNextFrame(), MP3FromADUSource::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), DVVideoStreamFramer::doGetNextFrame(), ByteStreamMemoryBufferSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), ADUFromMP3Source::doGetNextFrame1(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), BasicUDPSource::incomingPacketHandler1(), and AC3AudioStreamFramer::parseNextFrame().

00081                                                     {
00082   source->fIsCurrentlyAwaitingData = False;
00083       // indicates that we can be read again
00084       // Note that this needs to be done here, in case the "fAfterFunc"
00085       // called below tries to read another frame (which it usually will)
00086
00087   if (source->fAfterGettingFunc != NULL) {
00088     (*(source->fAfterGettingFunc))(source->fAfterGettingClientData,
00089                                    source->fFrameSize, source->fNumTruncatedBytes,
00090                                    source->fPresentationTime,
00091                                    source->fDurationInMicroseconds);
00092   }
00093 }

Boolean MediaSource::isMPEG1or2VideoStreamFramer (  )  const [virtual, inherited]

Reimplemented in MPEG1or2VideoStreamFramer.

Definition at line 46 of file MediaSource.cpp.

References False.

Referenced by MPEG1or2VideoRTPSink::sourceIsCompatibleWithUs().

00046                                                        {
00047   return False; // default implementation
00048 }

Boolean MediaSource::isMPEG4VideoStreamFramer (  )  const [virtual, inherited]

Reimplemented in MPEG4VideoStreamFramer.

Definition at line 49 of file MediaSource.cpp.

References False.

Referenced by MPEG4ESVideoRTPSink::sourceIsCompatibleWithUs().

00049                                                     {
00050   return False; // default implementation
00051 }

Boolean MediaSource::isH264VideoStreamFramer (  )  const [virtual, inherited]

Reimplemented in H264VideoStreamFramer.

Definition at line 52 of file MediaSource.cpp.

References False.

Referenced by H264VideoRTPSink::sourceIsCompatibleWithUs().

00052                                                    {
00053   return False; // default implementation
00054 }

Boolean MediaSource::isDVVideoStreamFramer (  )  const [virtual, inherited]

Reimplemented in DVVideoStreamFramer.

Definition at line 55 of file MediaSource.cpp.

References False.

Referenced by DVVideoRTPSink::sourceIsCompatibleWithUs().

00055                                                  {
00056   return False; // default implementation
00057 }

Boolean MediaSource::isJPEGVideoSource (  )  const [virtual, inherited]

Reimplemented in JPEGVideoSource.

Definition at line 58 of file MediaSource.cpp.

References False.

Referenced by JPEGVideoRTPSink::sourceIsCompatibleWithUs().

00058                                              {
00059   return False; // default implementation
00060 }

Boolean MediaSource::isAMRAudioSource (  )  const [virtual, inherited]

Reimplemented in AMRAudioSource.

Definition at line 61 of file MediaSource.cpp.

References False.

Referenced by AMRAudioRTPSink::sourceIsCompatibleWithUs(), and AMRAudioFileSink::sourceIsCompatibleWithUs().

00061                                             {
00062   return False; // default implementation
00063 }

void Medium::close ( UsageEnvironment &  env,
char const *  mediumName
) [static, inherited]

Definition at line 52 of file Media.cpp.

References env, MediaLookupTable::ourMedia(), and MediaLookupTable::remove().

Referenced by afterPlaying(), Medium::close(), closeMediaSinks(), OnDemandServerMediaSubsession::closeStreamSource(), continueAfterTEARDOWN(), WAVAudioFileSource::createNew(), QuickTimeFileSink::createNew(), QCELPAudioRTPSource::createNew(), MP3FileSource::createNew(), AVIFileSink::createNew(), AMRAudioRTPSource::createNew(), WAVAudioFileServerMediaSubsession::createNewStreamSource(), MPEG1or2DemuxedServerMediaSubsession::createNewStreamSource(), MediaSubsession::deInitiate(), ServerMediaSession::deleteAllSubsessions(), RTSPServerSupportingHTTPStreaming::RTSPClientConnectionSupportingHTTPStreaming::handleHTTPCmd_StreamingGET(), MediaSubsession::initiate(), MPEG1or2ProgramStreamFileDuration(), MPEG1or2Demux::noteElementaryStreamDeletion(), ByteStreamMultiFileSource::onSourceClosure1(), StreamState::reclaim(), RTSPServer::removeServerMediaSession(), ProxyServerMediaSession::resetDESCRIBEState(), OnDemandServerMediaSubsession::sdpLines(), shutdownStream(), subsessionAfterPlaying(), ClientTrickPlayState::updateStateOnScaleChange(), AMRDeinterleaver::~AMRDeinterleaver(), ByteStreamMultiFileSource::~ByteStreamMultiFileSource(), DarwinInjector::~DarwinInjector(), FramedFilter::~FramedFilter(), H264VideoRTPSink::~H264VideoRTPSink(), InputESSourceRecord::~InputESSourceRecord(), MatroskaFileParser::~MatroskaFileParser(), MatroskaFileServerDemux::~MatroskaFileServerDemux(), MPEG1or2Demux::~MPEG1or2Demux(), MPEG1or2FileServerDemux::~MPEG1or2FileServerDemux(), MPEG2TransportFileServerMediaSubsession::~MPEG2TransportFileServerMediaSubsession(), MPEG2TransportStreamFromPESSource::~MPEG2TransportStreamFromPESSource(), ProxyServerMediaSession::~ProxyServerMediaSession(), RTSPServerSupportingHTTPStreaming::RTSPClientConnectionSupportingHTTPStreaming::~RTSPClientConnectionSupportingHTTPStreaming(), ServerMediaSubsession::~ServerMediaSubsession(), StreamClientState::~StreamClientState(), StreamReplicator::~StreamReplicator(), and T140TextRTPSink::~T140TextRTPSink().

00052                                                           {
00053   MediaLookupTable::ourMedia(env)->remove(name);
00054 }

void Medium::close ( Medium *  medium  )  [static, inherited]

Definition at line 56 of file Media.cpp.

References Medium::close(), Medium::envir(), Medium::name(), and NULL.

00056                                  {
00057   if (medium == NULL) return;
00058
00059   close(medium->envir(), medium->name());
00060 }

UsageEnvironment& Medium::envir (  )  const [inline, inherited]

Definition at line 59 of file Media.hh.

References Medium::fEnviron.

Referenced by QuickTimeFileSink::addArbitraryString(), FileSink::addData(), RTCPInstance::addStreamSocket(), MPEG2IFrameIndexFromTransportStream::addToTail(), StreamParser::afterGettingBytes1(), DummySink::afterGettingFrame(), TCPStreamSink::afterGettingFrame(), T140IdleFilter::afterGettingFrame(), FileSink::afterGettingFrame(), MultiFramedRTPSink::afterGettingFrame1(), InputESSourceRecord::afterGettingFrame1(), MPEG2TransportStreamFramer::afterGettingFrame1(), MPEG2IFrameIndexFromTransportStream::afterGettingFrame1(), H264VideoStreamDiscreteFramer::afterGettingFrame1(), BasicUDPSink::afterGettingFrame1(), MPEG4VideoFileServerMediaSubsession::afterPlayingDummy1(), H264VideoFileServerMediaSubsession::afterPlayingDummy1(), MPEG4VideoStreamParser::analyzeVOLHeader(), announceStream(), RTSPServer::RTSPClientConnection::changeClientInputSocket(), MPEG4VideoFileServerMediaSubsession::checkForAuxSDPLine1(), H264VideoFileServerMediaSubsession::checkForAuxSDPLine1(), Medium::close(), ProxyServerMediaSubsession::closeStreamSource(), MPEG2IFrameIndexFromTransportStream::compactParseBuffer(), RTSPClient::connectionHandler1(), RTSPClient::connectToServer(), ProxyServerMediaSession::continueAfterDESCRIBE(), ProxyRTSPClient::continueAfterLivenessCommand(), ProxyRTSPClient::continueAfterSETUP(), T140TextRTPSink::continuePlaying(), QuickTimeFileSink::continuePlaying(), H264VideoRTPSink::continuePlaying(), AVIFileSink::continuePlaying(), VP8VideoMatroskaFileServerMediaSubsession::createNewRTPSink(), VorbisAudioMatroskaFileServerMediaSubsession::createNewRTPSink(), T140TextMatroskaFileServerMediaSubsession::createNewRTPSink(), ProxyServerMediaSubsession::createNewRTPSink(), MPEG4VideoFileServerMediaSubsession::createNewRTPSink(), MPEG2TransportUDPServerMediaSubsession::createNewRTPSink(), MPEG2TransportFileServerMediaSubsession::createNewRTPSink(), MPEG1or2VideoFileServerMediaSubsession::createNewRTPSink(), MPEG1or2DemuxedServerMediaSubsession::createNewRTPSink(), MP3AudioFileServerMediaSubsession::createNewRTPSink(), H264VideoFileServerMediaSubsession::createNewRTPSink(), H263plusVideoFileServerMediaSubsession::createNewRTPSink(), DVVideoFileServerMediaSubsession::createNewRTPSink(), AMRAudioFileServerMediaSubsession::createNewRTPSink(), ADTSAudioFileServerMediaSubsession::createNewRTPSink(), AC3AudioMatroskaFileServerMediaSubsession::createNewRTPSink(), AC3AudioFileServerMediaSubsession::createNewRTPSink(), AACAudioMatroskaFileServerMediaSubsession::createNewRTPSink(), ProxyServerMediaSubsession::createNewStreamSource(), MPEG4VideoFileServerMediaSubsession::createNewStreamSource(), MPEG2TransportUDPServerMediaSubsession::createNewStreamSource(), MPEG2TransportFileServerMediaSubsession::createNewStreamSource(), MPEG1or2VideoFileServerMediaSubsession::createNewStreamSource(), MPEG1or2DemuxedServerMediaSubsession::createNewStreamSource(), MP3AudioFileServerMediaSubsession::createNewStreamSource(), H264VideoMatroskaFileServerMediaSubsession::createNewStreamSource(), H264VideoFileServerMediaSubsession::createNewStreamSource(), H263plusVideoFileServerMediaSubsession::createNewStreamSource(), DVVideoFileServerMediaSubsession::createNewStreamSource(), AMRAudioFileServerMediaSubsession::createNewStreamSource(), ADTSAudioFileServerMediaSubsession::createNewStreamSource(), AC3AudioFileServerMediaSubsession::createNewStreamSource(), AMRDeinterleavingBuffer::deliverIncomingFrame(), MPEG2IFrameIndexFromTransportStream::deliverIndexRecord(), SegmentQueue::dequeue(), DeviceSource::DeviceSource(), WAVAudioFileSource::doGetNextFrame(), T140IdleFilter::doGetNextFrame(), MPEG2TransportStreamMultiplexor::doGetNextFrame(), MPEG2IFrameIndexFromTransportStream::doGetNextFrame(), MP3FileSource::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), ByteStreamMultiFileSource::doGetNextFrame(), ByteStreamFileSource::doGetNextFrame(), BasicUDPSource::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), MP3FileSource::doGetNextFrame1(), ADUFromMP3Source::doGetNextFrame1(), SIPClient::doInviteStateMachine(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), MPEG1or2VideoRTPSink::doSpecialFrameHandling(), MP3ADURTPSink::doSpecialFrameHandling(), H263plusVideoRTPSink::doSpecialFrameHandling(), WAVAudioFileSource::doStopGettingFrames(), T140IdleFilter::doStopGettingFrames(), MultiFramedRTPSource::doStopGettingFrames(), FramedSource::doStopGettingFrames(), ByteStreamFileSource::doStopGettingFrames(), BasicUDPSource::doStopGettingFrames(), SegmentQueue::enqueueNewSegment(), StreamParser::ensureValidBytes1(), MediaSubsession::env(), SubsessionIOState::envir(), RTSPServer::RTSPClientSession::envir(), RTSPServer::RTSPClientConnection::envir(), RTPInterface::envir(), AVISubsessionIOState::envir(), ServerMediaSession::generateSDPDescription(), RTPSource::getAttributes(), MP3FileSource::getAttributes(), MP3ADUTranscoder::getAttributes(), MediaSource::getAttributes(), MPEG4VideoFileServerMediaSubsession::getAuxSDPLine(), H264VideoFileServerMediaSubsession::getAuxSDPLine(), getMPEG1or2TimeCode(), FramedSource::getNextFrame(), getOptions(), DVVideoStreamFramer::getProfile(), SIPClient::getResponse(), SIPClient::getResponseCode(), getSDPDescription(), OnDemandServerMediaSubsession::getStreamParameters(), RTSPClient::handleAlternativeRequestByte1(), RTSPClient::handleGET_PARAMETERResponse(), RTSPServerSupportingHTTPStreaming::RTSPClientConnectionSupportingHTTPStreaming::handleHTTPCmd_StreamingGET(), RTSPClient::handleIncomingRequest(), RTSPClient::handlePLAYResponse(), RTSPClient::handleRequestError(), RTSPClient::handleResponseBytes(), RTSPClient::handleSETUPResponse(), RTSPServer::incomingConnectionHandler(), RTSPClient::incomingDataHandler1(), RTCPInstance::incomingReportHandler1(), MP3FileSource::initializeStream(), MediaSession::initializeWithSDP(), MediaSession::initiateByMediaType(), SIPClient::invite1(), DynamicRTSPServer::lookupServerMediaSession(), MatroskaDemux::MatroskaDemux(), MatroskaFile::MatroskaFile(), MPEG4GenericRTPSource::MPEG4GenericRTPSource(), MultiFramedRTPSource::networkReadHandler1(), MatroskaDemux::newDemuxedTrack(), MPEG1or2FileServerDemux::newElementaryStream(), MPEG1or2Demux::newElementaryStream(), MPEG4GenericBufferedPacket::nextEnclosedFrameSize(), AMRBufferedPacket::nextEnclosedFrameSize(), T140IdleFilter::onSourceClosure(), RTSPClient::openConnection(), MPEG2TransportStreamIndexFile::openFid(), MPEG2IFrameIndexFromTransportStream::parseFrame(), AC3AudioStreamParser::parseFrame(), MPEGProgramStreamParser::parsePackHeader(), MPEGProgramStreamParser::parsePESPacket(), SIPClient::parseResponseCode(), MediaSession::parseSDPLine(), MPEG1or2VideoStreamParser::parseSlice(), MatroskaFileParser::parseStartOfFile(), MPEGProgramStreamParser::parseSystemHeader(), MPEG4VideoStreamParser::parseVideoObjectLayer(), MPEG4VideoStreamParser::parseVideoObjectPlane(), MPEG4VideoStreamParser::parseVisualObject(), TCPStreamSink::processBuffer(), SIPClient::processURL(), AC3AudioStreamParser::readAndSaveAFrame(), MPEG1or2Demux::registerReadInterest(), RTCPInstance::reschedule(), RTSPClient::resendCommand(), ProxyRTSPClient::reset(), RTSPClient::resetTCPSockets(), RTSPClient::responseHandlerForHTTP_GET1(), RTSPServer::rtspURLPrefix(), RTCPInstance::schedule(), ProxyRTSPClient::scheduleDESCRIBECommand(), ProxyRTSPClient::scheduleLivenessCommand(), OnDemandServerMediaSubsession::sdpLines(), SIPClient::sendACK(), SIPClient::sendBYE(), SIPClient::sendINVITE(), MultiFramedRTPSink::sendPacketIfNecessary(), SIPClient::sendRequest(), RTSPClient::sendRequest(), DarwinInjector::setDestination(), RTSPClient::setupHTTPTunneling1(), setupNextSubsession(), RTSPServer::setUpTunnelingOverHTTP(), QuickTimeFileSink::setWord(), AVIFileSink::setWord(), QuickTimeFileSink::setWord64(), shutdownStream(), SIPClient::SIPClient(), TCPStreamSink::socketWritableHandler1(), AMRAudioRTPSink::sourceIsCompatibleWithUs(), QuickTimeFileSink::startPlaying(), StreamState::startPlaying(), MediaSink::startPlaying(), AVIFileSink::startPlaying(), startPlayingSession(), PassiveServerMediaSubsession::startStream(), MediaSink::stopPlaying(), ProxyServerMediaSubsession::subsessionByeHandler(), tearDownSession(), SIPClient::timerAHandler(), SIPClient::timerBHandler(), SIPClient::timerDHandler(), ClientTrickPlayState::updateStateOnScaleChange(), MPEG2TransportStreamFramer::updateTSPacketDurationEstimate(), BasicUDPSource::~BasicUDPSource(), ByteStreamFileSource::~ByteStreamFileSource(), DeviceSource::~DeviceSource(), ProxyServerMediaSession::~ProxyServerMediaSession(), ProxyServerMediaSubsession::~ProxyServerMediaSubsession(), RTSPServer::~RTSPServer(), StreamClientState::~StreamClientState(), T140IdleFilter::~T140IdleFilter(), and WAVAudioFileSource::~WAVAudioFileSource().

00059 {return fEnviron;}

char const* Medium::name (  )  const [inline, inherited]

Definition at line 61 of file Media.hh.

References Medium::fMediumName.

Referenced by QuickTimeFileSink::addAtom_hdlr2(), Medium::close(), MP3ADUTranscoder::createNew(), MP3FromADUSource::createNew(), ADUFromMP3Source::createNew(), and MP3FileSource::initializeStream().

00061 {return fMediumName;}

Boolean Medium::isSink (  )  const [virtual, inherited]

Reimplemented in MediaSink.

Definition at line 66 of file Media.cpp.

References False.

Referenced by MediaSink::lookupByName().

00066                              {
00067   return False; // default implementation
00068 }

Boolean Medium::isRTCPInstance (  )  const [virtual, inherited]

Reimplemented in RTCPInstance.

Definition at line 70 of file Media.cpp.

References False.

Referenced by RTCPInstance::lookupByName().

00070                                      {
00071   return False; // default implementation
00072 }

Boolean Medium::isRTSPClient (  )  const [virtual, inherited]

Reimplemented in RTSPClient.

Definition at line 74 of file Media.cpp.

References False.

Referenced by RTSPClient::lookupByName().

00074                                    {
00075   return False; // default implementation
00076 }

Boolean Medium::isRTSPServer (  )  const [virtual, inherited]

Reimplemented in RTSPServer.

Definition at line 78 of file Media.cpp.

References False.

Referenced by RTSPServer::lookupByName().

00078                                    {
00079   return False; // default implementation
00080 }

Boolean Medium::isMediaSession (  )  const [virtual, inherited]

Reimplemented in MediaSession.

Definition at line 82 of file Media.cpp.

References False.

Referenced by MediaSession::lookupByName().

00082                                      {
00083   return False; // default implementation
00084 }

Boolean Medium::isServerMediaSession (  )  const [virtual, inherited]

Reimplemented in ServerMediaSession.

Definition at line 86 of file Media.cpp.

References False.

Referenced by ServerMediaSession::lookupByName().

00086                                            {
00087   return False; // default implementation
00088 }

Boolean Medium::isDarwinInjector (  )  const [virtual, inherited]

Reimplemented in DarwinInjector.

Definition at line 90 of file Media.cpp.

References False.

Referenced by DarwinInjector::lookupByName().

00090                                        {
00091   return False; // default implementation
00092 }

TaskToken& Medium::nextTask (  )  [inline, protected, inherited]

Definition at line 78 of file Media.hh.

References Medium::fNextTask.

Referenced by BasicUDPSink::afterGettingFrame1(), MPEG4VideoFileServerMediaSubsession::afterPlayingDummy1(), H264VideoFileServerMediaSubsession::afterPlayingDummy1(), MPEG4VideoFileServerMediaSubsession::checkForAuxSDPLine1(), H264VideoFileServerMediaSubsession::checkForAuxSDPLine1(), MP3FileSource::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), MultiFramedRTPSource::doStopGettingFrames(), FramedSource::doStopGettingFrames(), ByteStreamFileSource::doStopGettingFrames(), RTCPInstance::reschedule(), RTCPInstance::schedule(), MultiFramedRTPSink::sendPacketIfNecessary(), and MediaSink::stopPlaying().

00078                         {
00079         return fNextTask;
00080   }

Friends And Related Function Documentation

friend class MediaLookupTable [friend, inherited]

Definition at line 74 of file Media.hh.

Field Documentation

u_int32_t H261VideoRTPSource::fLastSpecialHeader [private]

Definition at line 53 of file H261VideoRTPSource.hh.

Referenced by lastSpecialHeader(), and processSpecialHeader().

Boolean MultiFramedRTPSource::fCurrentPacketBeginsFrame [protected, inherited]

Definition at line 51 of file MultiFramedRTPSource.hh.

Referenced by MultiFramedRTPSource::doGetNextFrame1(), VP8VideoRTPSource::processSpecialHeader(), VorbisAudioRTPSource::processSpecialHeader(), QuickTimeGenericRTPSource::processSpecialHeader(), MPEG4LATMAudioRTPSource::processSpecialHeader(), MPEG4GenericRTPSource::processSpecialHeader(), MPEG4ESVideoRTPSource::processSpecialHeader(), MPEG1or2VideoRTPSource::processSpecialHeader(), JPEGVideoRTPSource::processSpecialHeader(), H264VideoRTPSource::processSpecialHeader(), H263plusVideoRTPSource::processSpecialHeader(), processSpecialHeader(), DVVideoRTPSource::processSpecialHeader(), AC3AudioRTPSource::processSpecialHeader(), and MultiFramedRTPSource::reset().

Boolean MultiFramedRTPSource::fCurrentPacketCompletesFrame [protected, inherited]

Definition at line 52 of file MultiFramedRTPSource.hh.

Referenced by MultiFramedRTPSource::doGetNextFrame1(), VP8VideoRTPSource::processSpecialHeader(), VorbisAudioRTPSource::processSpecialHeader(), SimpleRTPSource::processSpecialHeader(), QuickTimeGenericRTPSource::processSpecialHeader(), MPEG4LATMAudioRTPSource::processSpecialHeader(), MPEG4GenericRTPSource::processSpecialHeader(), MPEG4ESVideoRTPSource::processSpecialHeader(), MPEG1or2VideoRTPSource::processSpecialHeader(), JPEGVideoRTPSource::processSpecialHeader(), H264VideoRTPSource::processSpecialHeader(), H263plusVideoRTPSource::processSpecialHeader(), processSpecialHeader(), DVVideoRTPSource::processSpecialHeader(), AC3AudioRTPSource::processSpecialHeader(), and MultiFramedRTPSource::reset().

RTPInterface RTPSource::fRTPInterface [protected, inherited]

Definition at line 92 of file RTPSource.hh.

Referenced by MultiFramedRTPSource::doGetNextFrame(), MultiFramedRTPSource::doStopGettingFrames(), MultiFramedRTPSource::networkReadHandler1(), RTPSource::RTPgs(), RTPSource::setAuxilliaryReadHandler(), RTPSource::setServerRequestAlternativeByteHandler(), RTPSource::setStreamSocket(), and MultiFramedRTPSource::~MultiFramedRTPSource().

u_int16_t RTPSource::fCurPacketRTPSeqNum [protected, inherited]

Definition at line 93 of file RTPSource.hh.

Referenced by RTPSource::curPacketRTPSeqNum(), and MultiFramedRTPSource::doGetNextFrame1().

u_int32_t RTPSource::fCurPacketRTPTimestamp [protected, inherited]

Definition at line 94 of file RTPSource.hh.

Referenced by RTPSource::curPacketRTPTimestamp(), and MultiFramedRTPSource::doGetNextFrame1().

Boolean RTPSource::fCurPacketMarkerBit [protected, inherited]

Definition at line 95 of file RTPSource.hh.

Referenced by RTPSource::curPacketMarkerBit(), and MultiFramedRTPSource::doGetNextFrame1().

Boolean RTPSource::fCurPacketHasBeenSynchronizedUsingRTCP [protected, inherited]

Definition at line 96 of file RTPSource.hh.

Referenced by MultiFramedRTPSource::doGetNextFrame1(), and RTPSource::hasBeenSynchronizedUsingRTCP().

u_int32_t RTPSource::fLastReceivedSSRC [protected, inherited]

Definition at line 97 of file RTPSource.hh.

Referenced by RTPSource::lastReceivedSSRC(), and MultiFramedRTPSource::networkReadHandler1().

unsigned char* FramedSource::fTo [protected, inherited]

Definition at line 74 of file FramedSource.hh.

Referenced by DVVideoStreamFramer::afterGettingFrame(), EndianSwap24::afterGettingFrame1(), EndianSwap16::afterGettingFrame1(), HostFromNetworkOrder16::afterGettingFrame1(), NetworkFromHostOrder16::afterGettingFrame1(), PCMFromuLawAudioSource::afterGettingFrame1(), uLawFromPCMAudioSource::afterGettingFrame1(), MPEG4VideoStreamDiscreteFramer::afterGettingFrame1(), MPEG2TransportStreamFramer::afterGettingFrame1(), MPEG1or2VideoStreamDiscreteFramer::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), H264VideoStreamDiscreteFramer::afterGettingFrame1(), MPEG2TransportStreamTrickModeFilter::attemptDeliveryToClient(), StreamReplica::copyReceivedFrame(), StreamReplicator::deactivateStreamReplica(), MPEG2TransportStreamMultiplexor::deliverDataToClient(), DeviceSource::deliverFrame(), T140IdleFilter::deliverFromBuffer(), MPEG2IFrameIndexFromTransportStream::deliverIndexRecord(), StreamReplicator::deliverReceivedFrame(), EndianSwap24::doGetNextFrame(), EndianSwap16::doGetNextFrame(), HostFromNetworkOrder16::doGetNextFrame(), NetworkFromHostOrder16::doGetNextFrame(), QCELPDeinterleaver::doGetNextFrame(), PresentationTimeSubsessionNormalizer::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame(), MPEGVideoStreamFramer::doGetNextFrame(), MPEG4VideoStreamDiscreteFramer::doGetNextFrame(), MPEG2TransportStreamFramer::doGetNextFrame(), MPEG1or2VideoStreamDiscreteFramer::doGetNextFrame(), MPEG1or2DemuxedElementaryStream::doGetNextFrame(), MPEG1or2AudioStreamFramer::doGetNextFrame(), H264VideoStreamDiscreteFramer::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), H263plusVideoStreamFramer::doGetNextFrame(), DVVideoStreamFramer::doGetNextFrame(), ByteStreamMultiFileSource::doGetNextFrame(), ByteStreamMemoryBufferSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), AC3AudioStreamFramer::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), MP3FileSource::doGetNextFrame1(), ADUFromMP3Source::doGetNextFrame1(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), DVVideoStreamFramer::DVVideoStreamFramer(), MP3FromADUSource::generateFrameFromHeadADU(), DVVideoStreamFramer::getAndDeliverData(), StreamReplicator::getNextFrame(), FramedSource::getNextFrame(), BasicUDPSource::incomingPacketHandler1(), MP3ADUdeinterleaver::releaseOutgoingFrame(), MP3ADUinterleaver::releaseOutgoingFrame(), and MatroskaDemuxedTrack::to().

unsigned FramedSource::fMaxSize [protected, inherited]

Definition at line 75 of file FramedSource.hh.

Referenced by MPEG1or2VideoStreamDiscreteFramer::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), StreamReplica::copyReceivedFrame(), StreamReplicator::deactivateStreamReplica(), MPEG2TransportStreamMultiplexor::deliverDataToClient(), DeviceSource::deliverFrame(), T140IdleFilter::deliverFromBuffer(), MPEG2IFrameIndexFromTransportStream::deliverIndexRecord(), StreamReplicator::deliverReceivedFrame(), EndianSwap24::doGetNextFrame(), EndianSwap16::doGetNextFrame(), HostFromNetworkOrder16::doGetNextFrame(), NetworkFromHostOrder16::doGetNextFrame(), PCMFromuLawAudioSource::doGetNextFrame(), uLawFromPCMAudioSource::doGetNextFrame(), QCELPDeinterleaver::doGetNextFrame(), PresentationTimeSubsessionNormalizer::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame(), MPEGVideoStreamFramer::doGetNextFrame(), MPEG4VideoStreamDiscreteFramer::doGetNextFrame(), MPEG2TransportStreamTrickModeFilter::doGetNextFrame(), MPEG2TransportStreamFramer::doGetNextFrame(), MPEG1or2VideoStreamDiscreteFramer::doGetNextFrame(), MPEG1or2DemuxedElementaryStream::doGetNextFrame(), MPEG1or2AudioStreamFramer::doGetNextFrame(), H264VideoStreamDiscreteFramer::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), H263plusVideoStreamFramer::doGetNextFrame(), DVVideoStreamFramer::doGetNextFrame(), ByteStreamMultiFileSource::doGetNextFrame(), ByteStreamMemoryBufferSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), AC3AudioStreamFramer::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), MP3FileSource::doGetNextFrame1(), ADUFromMP3Source::doGetNextFrame1(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), DVVideoStreamFramer::getAndDeliverData(), StreamReplicator::getNextFrame(), FramedSource::getNextFrame(), BasicUDPSource::incomingPacketHandler1(), MatroskaDemuxedTrack::maxSize(), MP3ADUdeinterleaver::releaseOutgoingFrame(), and MP3ADUinterleaver::releaseOutgoingFrame().

unsigned FramedSource::fFrameSize [protected, inherited]

Definition at line 76 of file FramedSource.hh.

Referenced by FramedSource::afterGetting(), StreamReplicator::afterGettingFrame(), PresentationTimeSubsessionNormalizer::afterGettingFrame(), ByteStreamMultiFileSource::afterGettingFrame(), EndianSwap24::afterGettingFrame1(), EndianSwap16::afterGettingFrame1(), HostFromNetworkOrder16::afterGettingFrame1(), NetworkFromHostOrder16::afterGettingFrame1(), PCMFromuLawAudioSource::afterGettingFrame1(), uLawFromPCMAudioSource::afterGettingFrame1(), MPEG2TransportStreamFramer::afterGettingFrame1(), MPEG1or2DemuxedElementaryStream::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), H264VideoStreamDiscreteFramer::afterGettingFrame1(), MPEG2TransportStreamTrickModeFilter::attemptDeliveryToClient(), MPEGVideoStreamFramer::continueReadProcessing(), MPEG1or2AudioStreamFramer::continueReadProcessing(), H263plusVideoStreamFramer::continueReadProcessing(), StreamReplica::copyReceivedFrame(), MPEG2TransportStreamMultiplexor::deliverDataToClient(), T140IdleFilter::deliverEmptyFrame(), DeviceSource::deliverFrame(), T140IdleFilter::deliverFromBuffer(), MPEG2IFrameIndexFromTransportStream::deliverIndexRecord(), WAVAudioFileSource::doGetNextFrame(), QCELPDeinterleaver::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame(), MPEG2TransportStreamTrickModeFilter::doGetNextFrame(), MPEG2TransportStreamFramer::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), DVVideoStreamFramer::doGetNextFrame(), ByteStreamMemoryBufferSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), MP3FileSource::doGetNextFrame1(), ADUFromMP3Source::doGetNextFrame1(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), MatroskaDemuxedTrack::frameSize(), MP3FromADUSource::generateFrameFromHeadADU(), DVVideoStreamFramer::getAndDeliverData(), BasicUDPSource::incomingPacketHandler1(), AC3AudioStreamFramer::parseNextFrame(), MP3ADUdeinterleaver::releaseOutgoingFrame(), and MP3ADUinterleaver::releaseOutgoingFrame().

unsigned FramedSource::fNumTruncatedBytes [protected, inherited]

Definition at line 77 of file FramedSource.hh.

Referenced by FramedSource::afterGetting(), StreamReplicator::afterGettingFrame(), PresentationTimeSubsessionNormalizer::afterGettingFrame(), ByteStreamMultiFileSource::afterGettingFrame(), EndianSwap24::afterGettingFrame1(), EndianSwap16::afterGettingFrame1(), HostFromNetworkOrder16::afterGettingFrame1(), NetworkFromHostOrder16::afterGettingFrame1(), PCMFromuLawAudioSource::afterGettingFrame1(), uLawFromPCMAudioSource::afterGettingFrame1(), MPEG1or2DemuxedElementaryStream::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), H264VideoStreamDiscreteFramer::afterGettingFrame1(), MPEGVideoStreamFramer::continueReadProcessing(), MPEG1or2AudioStreamFramer::continueReadProcessing(), StreamReplica::copyReceivedFrame(), MPEG2TransportStreamMultiplexor::deliverDataToClient(), T140IdleFilter::deliverEmptyFrame(), DeviceSource::deliverFrame(), T140IdleFilter::deliverFromBuffer(), QCELPDeinterleaver::doGetNextFrame(), H264FUAFragmenter::doGetNextFrame(), DVVideoStreamFramer::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), FramedSource::getNextFrame(), MatroskaDemuxedTrack::numTruncatedBytes(), AC3AudioStreamFramer::parseNextFrame(), MP3ADUdeinterleaver::releaseOutgoingFrame(), and MP3ADUinterleaver::releaseOutgoingFrame().

struct timeval FramedSource::fPresentationTime [read, protected, inherited]

Definition at line 78 of file FramedSource.hh.

Referenced by FramedSource::afterGetting(), StreamReplicator::afterGettingFrame(), PresentationTimeSubsessionNormalizer::afterGettingFrame(), ByteStreamMultiFileSource::afterGettingFrame(), EndianSwap24::afterGettingFrame1(), EndianSwap16::afterGettingFrame1(), HostFromNetworkOrder16::afterGettingFrame1(), NetworkFromHostOrder16::afterGettingFrame1(), PCMFromuLawAudioSource::afterGettingFrame1(), uLawFromPCMAudioSource::afterGettingFrame1(), InputESSourceRecord::afterGettingFrame1(), MPEG2TransportStreamFramer::afterGettingFrame1(), MPEG1or2DemuxedElementaryStream::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), H264VideoStreamDiscreteFramer::afterGettingFrame1(), H264FUAFragmenter::afterGettingFrame1(), MPEG2TransportStreamTrickModeFilter::attemptDeliveryToClient(), MPEGVideoStreamFramer::computePresentationTime(), MPEGVideoStreamFramer::continueReadProcessing(), MPEG1or2AudioStreamFramer::continueReadProcessing(), H263plusVideoStreamFramer::continueReadProcessing(), StreamReplica::copyReceivedFrame(), T140IdleFilter::deliverEmptyFrame(), DeviceSource::deliverFrame(), T140IdleFilter::deliverFromBuffer(), QCELPDeinterleaver::doGetNextFrame(), ByteStreamMemoryBufferSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), MultiFramedRTPSource::doGetNextFrame1(), MP3FileSource::doGetNextFrame1(), ADUFromMP3Source::doGetNextFrame1(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), FramedSource::FramedSource(), MP3FromADUSource::generateFrameFromHeadADU(), MPEG1or2VideoStreamFramer::getCurrentPTS(), H264VideoStreamParser::parse(), AC3AudioStreamFramer::parseNextFrame(), MatroskaDemuxedTrack::presentationTime(), MP3ADUdeinterleaver::releaseOutgoingFrame(), MP3ADUinterleaver::releaseOutgoingFrame(), and H264VideoStreamFramer::setPresentationTime().

unsigned FramedSource::fDurationInMicroseconds [protected, inherited]

Definition at line 79 of file FramedSource.hh.

Referenced by FramedSource::afterGetting(), StreamReplicator::afterGettingFrame(), PresentationTimeSubsessionNormalizer::afterGettingFrame(), ByteStreamMultiFileSource::afterGettingFrame(), EndianSwap24::afterGettingFrame1(), EndianSwap16::afterGettingFrame1(), HostFromNetworkOrder16::afterGettingFrame1(), NetworkFromHostOrder16::afterGettingFrame1(), PCMFromuLawAudioSource::afterGettingFrame1(), uLawFromPCMAudioSource::afterGettingFrame1(), MPEG2TransportStreamFramer::afterGettingFrame1(), MPEG1or2DemuxedElementaryStream::afterGettingFrame1(), MP3ADUTranscoder::afterGettingFrame1(), H264VideoStreamDiscreteFramer::afterGettingFrame1(), H264FUAFragmenter::afterGettingFrame1(), MPEGVideoStreamFramer::continueReadProcessing(), MPEG1or2AudioStreamFramer::continueReadProcessing(), H263plusVideoStreamFramer::continueReadProcessing(), StreamReplica::copyReceivedFrame(), T140IdleFilter::deliverFromBuffer(), QCELPDeinterleaver::doGetNextFrame(), ByteStreamMemoryBufferSource::doGetNextFrame(), AMRDeinterleaver::doGetNextFrame(), AMRAudioFileSource::doGetNextFrame(), ADTSAudioFileSource::doGetNextFrame(), MP3FileSource::doGetNextFrame1(), ADUFromMP3Source::doGetNextFrame1(), WAVAudioFileSource::doReadFromFile(), ByteStreamFileSource::doReadFromFile(), MatroskaDemuxedTrack::durationInMicroseconds(), MP3FromADUSource::generateFrameFromHeadADU(), FramedSource::getNextFrame(), AC3AudioStreamFramer::parseNextFrame(), MP3ADUdeinterleaver::releaseOutgoingFrame(), and MP3ADUinterleaver::releaseOutgoingFrame().

The documentation for this class was generated from the following files:
Generated on Mon Apr 29 13:31:33 2013 for live by  doxygen 1.5.2
